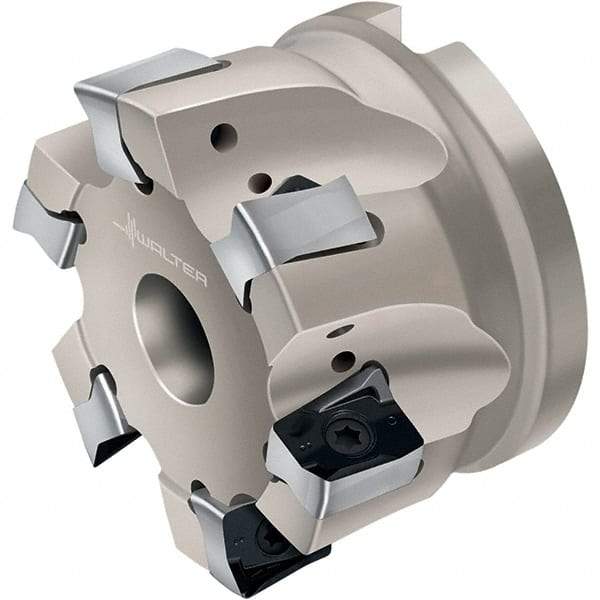

Walter - 8 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 0.512" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 2.48" High, LN.. 1307.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 53052478
Brand: Walter
Model #: 5537905
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | LN.. 1307.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | F4041 |
| Number of Flutes | 8 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | LNGX 130708R-L55; LNGX 130708R-L88; LNGX 130712R-L55; LNGX 130712R-L88; LNGX 130716R-L55; LNGX 130716R-L88; LNGX 130720R-L55; LNGX 130720R-L88; LNGX 130725R-L55; LNGX 130725R-L88; LNGX 130730R-L55; LNGX 130730R-L88 |
