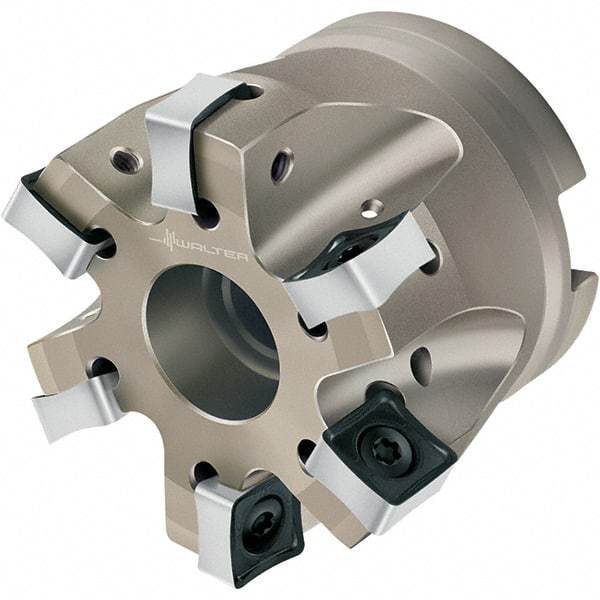

Walter - 10 Inserts, 5" Cut Diam, 1-1/2" Arbor Diam, 0.315" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 2.48" High, SN.X 1205.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 53052528
Brand: Walter
Model #: 5523480
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | SN.X 1205.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | F4048 |
| Number of Flutes | 10 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | SNGX 120512-F57; SNGX 1205ZNN-D27; SNGX 1205ZNN-F27; SNGX 1205ZNN-F57; SNGX 1205ZNN-F67; SNMX 120512-D27; SNMX 120512-F27; SNMX 120512-F57; SNMX 120512-F67; SNMX 120520-D27 |
