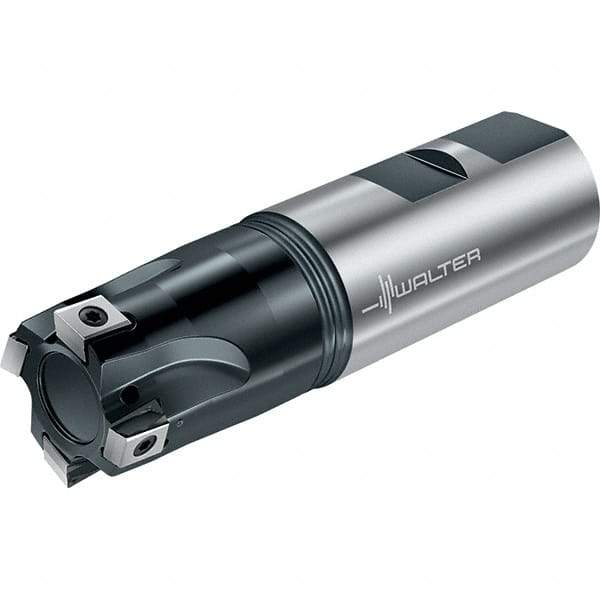

Walter - 32mm Cut Diam, 8mm Max Depth of Cut, 32mm Shank Diam, 110mm OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Through Coolant, Series Blaxx
Item #: 53052973
Brand: Walter
Model #: 6197372
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 110.00 |
| Overall Length/Projection (Decimal Inch) | 4.3307 |
| Lead Angle | 90 |
| Series | Blaxx |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F5041 |
| Number of Flutes | 5 |
| Head Length (mm) | 49.00 |
| Head Length (Decimal Inch) | 1.9291 |
| Weldon Flat | Yes |
| Insert Compatibility | LNHU 090404R-L55T; LNHU 090404R-L85T; LNHU 090408R-L55T; LNHU 090412R-L55T; LNHU 090416R-L55T; LNHU 090420R-L55T |
| Shank Length (Decimal Inch) | 2.4016 |
| Shank Length (mm) | 61.00 |
