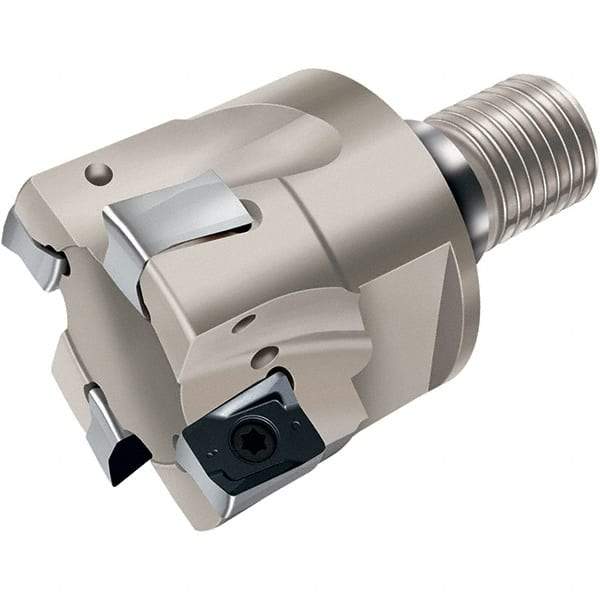

Walter - 1-1/2" Cut Diam, 0.512" Max Depth of Cut, Indexable Square Shoulder End Mill - Multiple Insert Styles, T36 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 53056602
Brand: Walter
Model #: 5051618
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Modular Connection |
| Modular Connection Size | T36 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F4041 |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.5750 |
| Insert Compatibility | LNGX130708R-L55; LNGX130708R-L88; LNGX130712R-L55; LNGX130712R-L88; LNGX130716R-L55; LNGX130716R-L88; LNGX130720R-L55; LNGX130720R-L88; LNGX130725R-L55; LNGX130725R-L88; LNGX130730R-L55; LNGX130730R-L88 |
