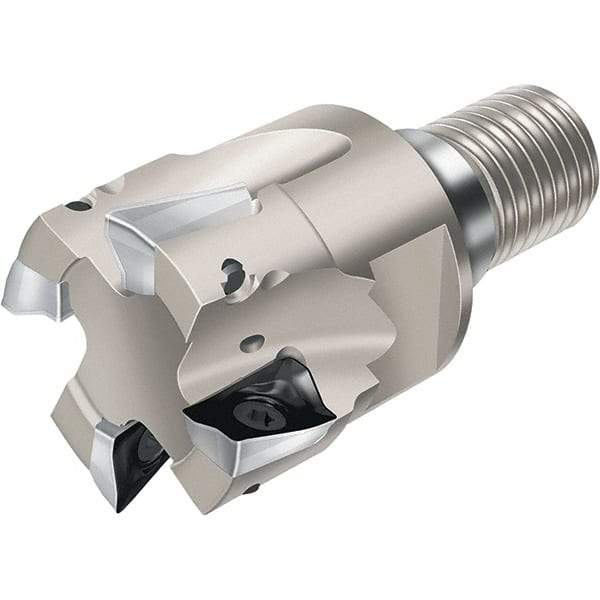

Walter - 1-1/2" Cut Diam, 0.591" Max Depth of Cut, Indexable Square Shoulder End Mill - Multiple Insert Styles, T36 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 53056644
Brand: Walter
Model #: 5051602
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Modular Connection |
| Modular Connection Size | T36 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F4042 |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.5750 |
| Insert Compatibility | ADGT 1606PER-D51; ADGT 1606PER-D56; ADGT 1606PER-F56; ADHT 160616R-G88; ADHT 160625R-G88; ADHT 160630R-G88; ADHT 160640R-G88; ADHT 1606PER-G88; ADKT1606PER-F56; ADMT 160608R-D56; ADMT 160608R-F56; ADMT 160608R-G56; ADMT 160612R-F56; ADMT 160616R-F56; ADMT |
