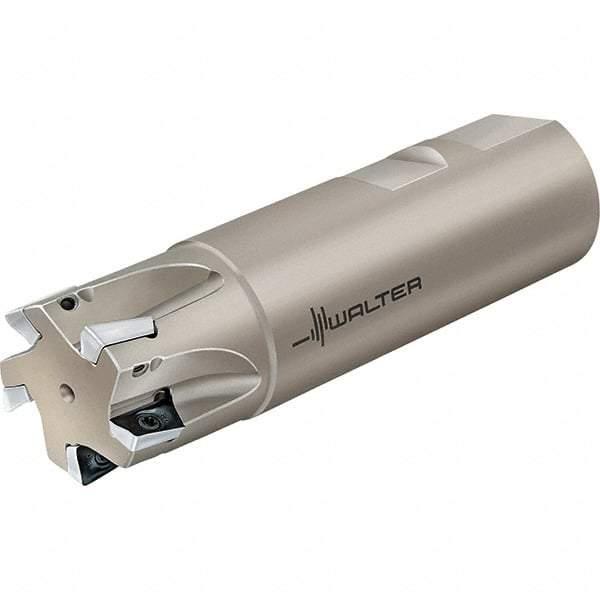

Walter - 1" Cut Diam, 0.394" Max Depth of Cut, 1" Shank Diam, 3.462" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Through Coolant, Series Xtra-tec
Item #: 53057055
Brand: Walter
Model #: 5530091
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 3.4620 |
| Lead Angle | 90 |
| Series | Xtra-tec |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F4042R |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.1810 |
| Weldon Flat | Yes |
| Insert Compatibility | ADGT 10T316R-D67; ADGT 10T316R-G77; ADGT 10T325R-D67; ADGT 10T325R-G77; ADGT 10T330R-D67; ADGT 10T330R-G77; ADGT 10T332R-D67; ADGT 10T332R-G77; ADGT 10T3PER-D67; ADGT 10T3PER-G77; ADHT 10T3PER-G88; ADKT10T3PER-F56; ADMT 10T308R-F56; ADMT 10T308R-G56; ADMT |
| Shank Length (Decimal Inch) | 2.2810 |
| Maximum RPM | 10000 |
