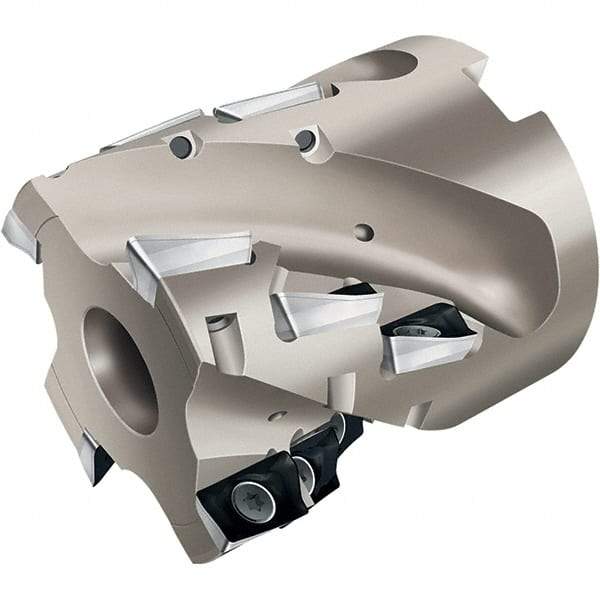

Walter - 20 Inserts, 80mm Cut Diam, 32mm Arbor Diam, 57mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 85mm High, AD.. 1606.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 53057592
Brand: Walter
Model #: 5098825
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (mm) | 85.00 |
| Overall Height (Decimal Inch) | 3.3465 |
| Insert Compatibility | AD.. 1606.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 57.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.2441 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| Cutter Style | F4238 |
| Number of Flutes | 5 |
| Keyway Width (mm) | 8.00 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Minimum Insert Radius (Decimal Inch) | 0.0315 |
| Complete Insert Compatibility | ADGT 1606PER-D51; ADGT 1606PER-D56; ADGT 1606PER-F56; ADHT 160616R-G88; ADHT 160625R-G88; ADHT 160630R-G88; ADHT 160640R-G88; ADHT 1606PER-G88; ADKT 1606PER-F56; ADMT 160608R-D56; ADMT 160608R-F56; ADMT 160608R-G56; ADMT 160612R-F56; ADMT 160616R-F56; ADM |
