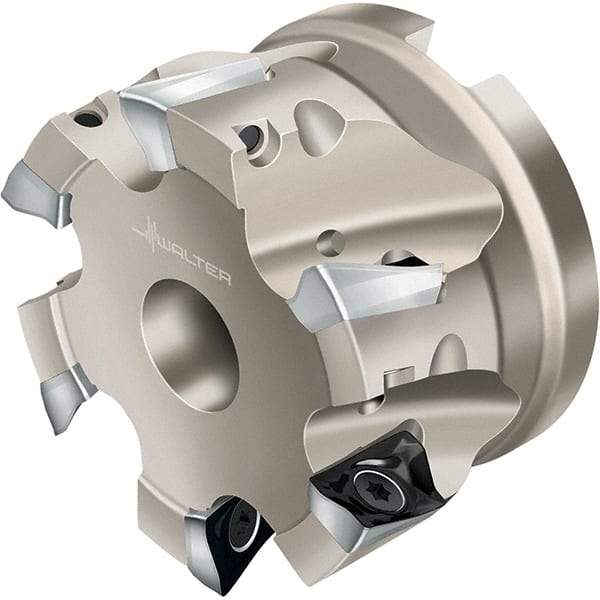

Walter - 8 Inserts, 125mm Cut Diam, 40mm Arbor Diam, 16.7mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 63mm High, AD.. 1807.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 53057618
Brand: Walter
Model #: 5100376
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | AD.. 1807.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 16.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6575 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | F4042 |
| Number of Flutes | 8 |
| Keyway Width (mm) | 10.00 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Maximum RPM | 10000 |
| Minimum Insert Radius (Decimal Inch) | 0.0472 |
| Complete Insert Compatibility | ADGT 1807PER-D51; ADGT 1807PER-D56; ADMT 180712R-D56; ADMT 180712R-F56 |
