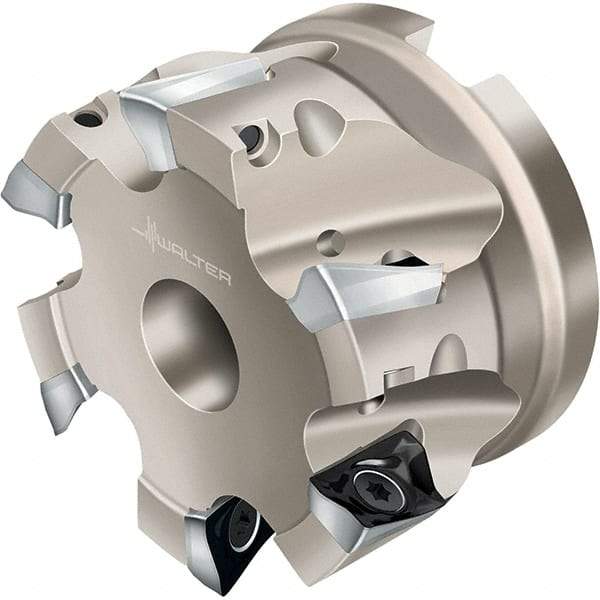

Walter - 4 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 15mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 40mm High, AD.. 1606.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 53058087
Brand: Walter
Model #: 6078059
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | AD.. 1606.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | F4042 |
| Number of Flutes | 4 |
| Keyway Width (mm) | 6.00 |
| Keyway Width (Decimal Inch) | 0.2362 |
| Maximum RPM | 10000 |
| Minimum Insert Radius (Decimal Inch) | 0.0315 |
| Complete Insert Compatibility | ADGT 160616R-D67; ADGT 160630R-D67; ADGT 1606PER-D51; ADGT 1606PER-D56; ADGT 1606PER-D67; ADGT 1606PER-F56; ADGT 1606PER-G77; ADHT 160616R-G88; ADHT 160625R-G88; ADHT 160630R-G88; ADHT 160640R-G88; ADHT 1606PER-G88; ADKT 1606PER-F56; ADMT 160608R-D56; ADM |
