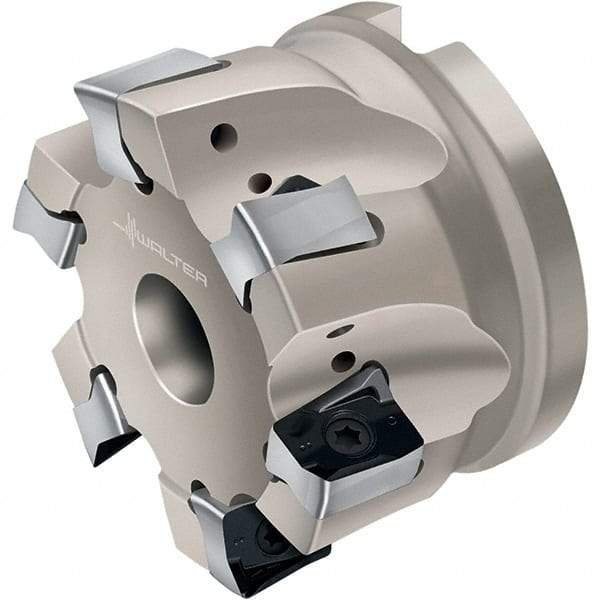

Walter - 10 Inserts, 125mm Cut Diam, 40mm Arbor Diam, 13mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - LN.. 1307.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 53077806
Brand: Walter
Model #: 6411221
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | LN.. 1307.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | F4041 |
| Number of Flutes | 10 |
| Keyway Width (mm) | 10.00 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Minimum Insert Radius (Decimal Inch) | 0.0315 |
| Complete Insert Compatibility | LNGX 130708R-L55; LNGX 130708R-L88; LNGX 130712R-L55; LNGX 130712R-L88; LNGX 130716R-L55; LNGX 130716R-L88; LNGX 130720R-L55; LNGX 130720R-L88; LNGX 130725R-L55; LNGX 130725R-L88; LNGX 130730R-L55; LNGX 130730R-L88 |
