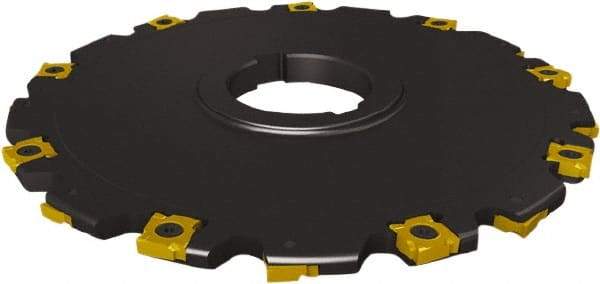

Seco - Arbor Hole Connection, 3/16" Cutting Width, 1.04" Depth of Cut, 101.6mm Cutter Diam, 1" Hole Diam, 6 Tooth Indexable Slotting Cutter - 335.19 Toolholder, SNHQ 1103L, SNHQ 1103R Insert, Right Hand Cutting Direction
Item #: 53096087
Brand: Seco
Model #: 81992
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 4.75 |
| Cutting Width (Decimal Inch) | 0.1870 |
| Maximum Depth of Cut (mm) | 26.42 |
| Maximum Depth of Cut (Decimal Inch) | 1.0400 |
| Cutter Diameter (mm) | 101.60 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Hole Diameter (mm) | 25.40 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 6 |
| Toolholder Style | 335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1103L; SNHQ 1103R |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 13200 |
| Hub Diameter (mm) | 41.40 |
| Hub Diameter (Decimal Inch) | 1.6300 |
| Keyway Width (Decimal Inch) | 0.2500 |
| Radius | No |
| Cutter Body Width (mm) | 12.70 |
| Cutter Body Width (Decimal Inch) | 0.5000 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 335.19-04.00-0.18-6 |
| Complete Insert Compatibility2 | SNHQ 1103L-MM4500-M07; SNHQ 1103L-MP2500-M07; SNHQ 1103R-F30M-M07; SNHQ 1103R-F40M-M07; SNHQ 1103R-MM4500-M07; SNHQ 1103R-MP2500-M07 |
| Complete Insert Compatibility1 | SNHQ 1103L-F30M-M07; SNHQ 1103L-F40M-E05; SNHQ 1103L-F40M-M07; SNHQ 1103L-H25-E05; SNHQ 1103R-F40M-E05; SNHQ 1103R-H25-E05 |
