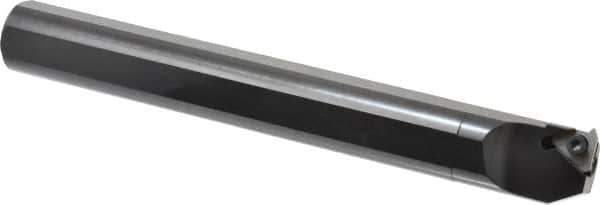

Hertel - Internal Thread, Right Hand Cut, 1-1/4" Shank Width Indexable Threading Toolholder - 10" OAL, 22IR Insert Compatibility, HSI Toolholder, Series HSIR
Item #: 53438750
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (Inch) | 10 |
| Insert Compatibility | 22IR |
| Series | HSIR |
| Toolholder Style | HSI |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Center to Cutting Edge (Decimal Inch) | 0.8500 |
| Neck Diameter (Decimal Inch) | 1.2500 |
| Minimum Bore Diameter (Decimal Inch) | 1.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
