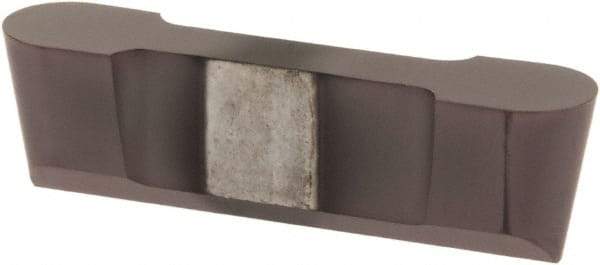

Tool-Flo - 250VDB Grade AC50, 1/4" Cutting Width Carbide Grooving Insert - 13/16" Max Depth of Cut, Neutral, 1/8" Corner Radius, AlTiN Finish
Item #: 53816831
Brand: Tool-Flo
Model #: 79250RAAC50E
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VDB |
| Insert Size | 250 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.8120 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | AC50 |
| Coating | AlTiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.2500 |
| Lead Angle | 0 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0000 |
| Maximum Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Coating Process | PVD |
| Series | VDB |
| Rake | Neutral |
| Manufacturers Catalog Number | VDB 250 RA |
