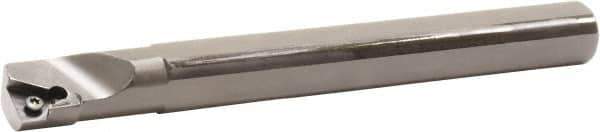

Sumitomo - Internal Thread, Right Hand Cut, 3/4" Shank Width x 0.67" Shank Height Indexable Threading Toolholder - 7" OAL, TMI..R, TNPTI..R Insert Compatibility, STIR Toolholder, Series Laydown Threading
Item #: 53951471
Brand: Sumitomo
Model #: 2600W1X
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.6700 |
| Overall Length (Decimal Inch) | 7.0000 |
| Insert Compatibility | TMI..R; TNPTI..R |
| Series | Laydown Threading |
| Toolholder Style | STIR |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Grooving |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 0.4920 |
| Head Length (Decimal Inch) | 1.5750 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
