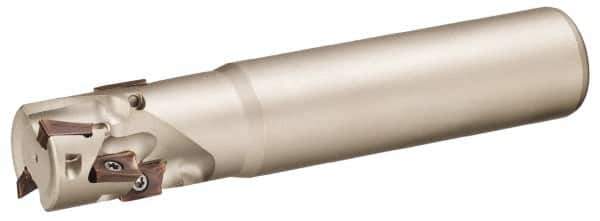

Sumitomo - 32mm Cut Diam, 32mm Shank Diam, 130mm OAL, Indexable Square Shoulder End Mill - WRX 2000 Inserts, Cylindrical Shank, 90° Lead Angle, Series WaveMill
Item #: 53963450
Brand: Sumitomo
Model #: 2900633
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 130.00 |
| Overall Length/Projection (Decimal Inch) | 5.1181 |
| Lead Angle | 90 |
| Series | WaveMill |
| Through Coolant | Noncoolant Through |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | WRX |
| Head Length (mm) | 45.00 |
| Head Length (Decimal Inch) | 1.7717 |
| Weldon Flat | Yes |
| Insert Compatibility | WRX 2000 |
| Shank Length (Decimal Inch) | 3.3465 |
| Shank Length (mm) | 85.00 |
