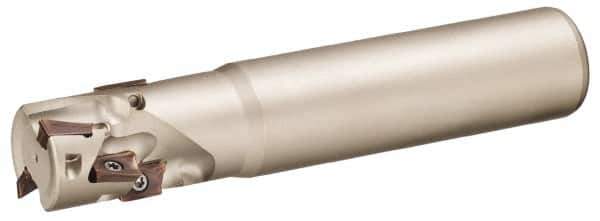

Sumitomo - 20mm Cut Diam, 20mm Shank Diam, 120mm OAL, Indexable Square Shoulder End Mill - WRX 2000 Inserts, Cylindrical Shank, 90° Lead Angle, Series WaveMill
Item #: 53963930
Brand: Sumitomo
Model #: 2900643
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (mm) | 120.00 |
| Overall Length/Projection (Decimal Inch) | 4.7244 |
| Lead Angle | 90 |
| Series | WaveMill |
| Through Coolant | Noncoolant Through |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | WRX |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Weldon Flat | Yes |
| Insert Compatibility | WRX 2000 |
| Shank Length (Decimal Inch) | 3.1496 |
| Shank Length (mm) | 80.00 |
