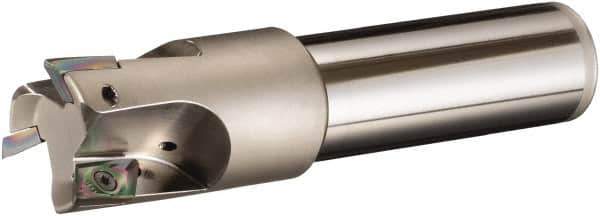

Sumitomo - 25mm Cut Diam, 25mm Shank Diam, 140mm OAL, Indexable Square Shoulder End Mill - AECT Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series WaveMill
Item #: 53964227
Brand: Sumitomo
Model #: 2200ABH
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 140.00 |
| Overall Length/Projection (Decimal Inch) | 5.5118 |
| Lead Angle | 90 |
| Series | WaveMill |
| Through Coolant | Coolant Through |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | WAX |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3622 |
| Weldon Flat | No |
| Insert Compatibility | AECT |
| Shank Length (Decimal Inch) | 3.1496 |
| Shank Length (mm) | 80.00 |
