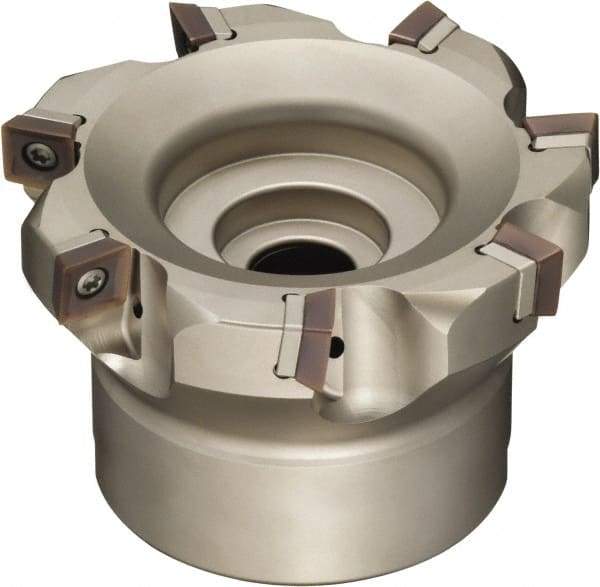

Sumitomo - 10 Inserts, 200mm Cut Diam, 47.63mm Arbor Diam, Indexable Square-Shoulder Face Mill - 63mm High, SOMT 1204.. Insert Compatibility, Through Coolant, Series WaveMill
Item #: 53964367
Brand: Sumitomo
Model #: 2200AEV
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Arbor Hole Diameter (mm) | 47.63 |
| Arbor Hole Diameter (Decimal Inch) | 1.8752 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | SOMT 1204.. |
| Series | WaveMill |
| Through Coolant | Yes |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | WFX |
| Hub Diameter (mm) | 150.00 |
| Hub Diameter (Decimal Inch) | 5.9055 |
| Keyway Width (mm) | 25.40 |
| Keyway Width (Decimal Inch) | 1.0000 |
| Pitch | Coarse |
| Coolant Hole Diameter (Decimal Inch) | 0.7087 |
| Counterbore Diameter (Decimal Inch) | 5.1181 |
| Complete Insert Compatibility | SOMT 120408PDER |
