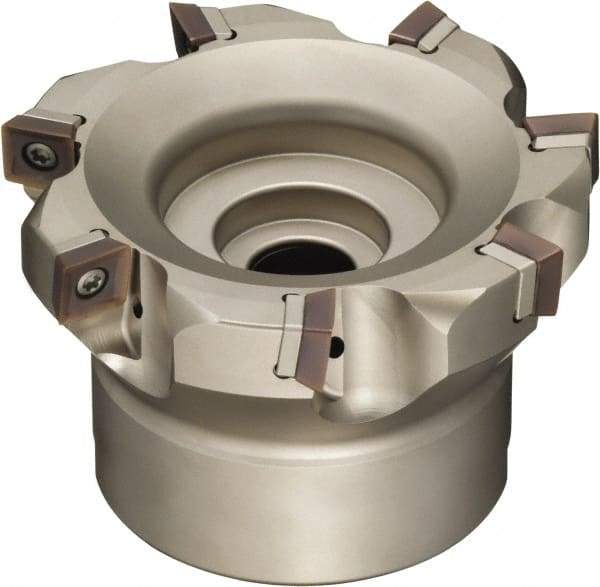

Sumitomo - 8 Inserts, 125mm Cut Diam, 38.1mm Arbor Diam, Indexable Square-Shoulder Face Mill - 63mm High, SOMT 1204.. Insert Compatibility, Through Coolant, Series WaveMill
Item #: 53964433
Brand: Sumitomo
Model #: 2200AFE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | SOMT 1204.. |
| Series | WaveMill |
| Through Coolant | Yes |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | WFXF |
| Hub Diameter (mm) | 80.00 |
| Hub Diameter (Decimal Inch) | 3.1496 |
| Keyway Width (mm) | 15.90 |
| Keyway Width (Decimal Inch) | 0.6260 |
| Pitch | Fine |
| Counterbore Diameter (Decimal Inch) | 2.1654 |
| Complete Insert Compatibility | SOMT 120408PDER |
