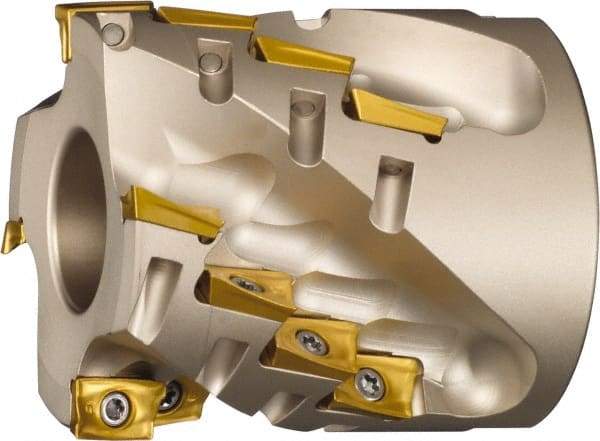

Sumitomo - 24 Inserts, 100mm Cut Diam, 40mm Arbor Diam, 53mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 85mm High, AX.T 1235 Insert Compatibility, Through Coolant, Series WaveMill
Item #: 53964581
Brand: Sumitomo
Model #: 2900630
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 85.00 |
| Overall Height (Decimal Inch) | 3.3465 |
| Insert Compatibility | AX.T 1235 |
| Series | WaveMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 53.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.0866 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| Cutter Style | WRX |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | AXET 1235; AXMT 1235 |
