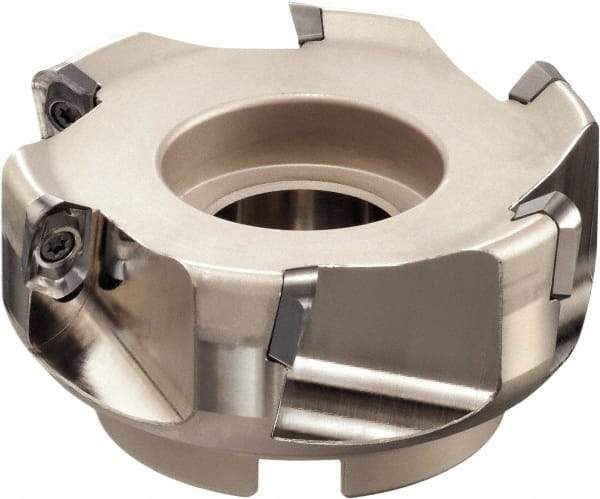

Sumitomo - 6 Inserts, 4" Cut Diam, 1-1/4" Arbor Diam, 1.181" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 2-1/2" High, AECT 1604 Insert Compatibility, Through Coolant, Series WaveMill
Item #: 53964649
Brand: Sumitomo
Model #: 2200W7V
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (Decimal Inch) | 2.5000 |
| Insert Compatibility | AECT 1604 |
| Series | WaveMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 1.1810 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | WAX |
| Keyway Width (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | AECT 1604 |
