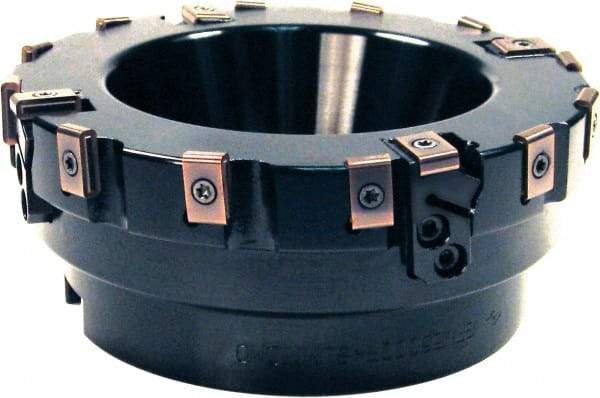

Sumitomo - 12 Inserts, 3.342" Cut Diam, 1-1/2" Arbor Diam, Indexable Square-Shoulder Face Mill - 2" High, LNGX 1605.. Insert Compatibility, Series SumiMill
Item #: 53964656
Brand: Sumitomo
Model #: U102036
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.3420 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | LNGX 1605.. |
| Series | SumiMill |
| Through Coolant | No |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | GFV |
| Hub Diameter (Decimal Inch) | 3.3800 |
| Keyway Width (Decimal Inch) | 0.6380 |
| Maximum Body Diameter (Decimal Inch) | 4.0000 |
| Complete Insert Compatibility | LNGX 160516PNFN-W |
| Toolholder Material | Cast Iron |
