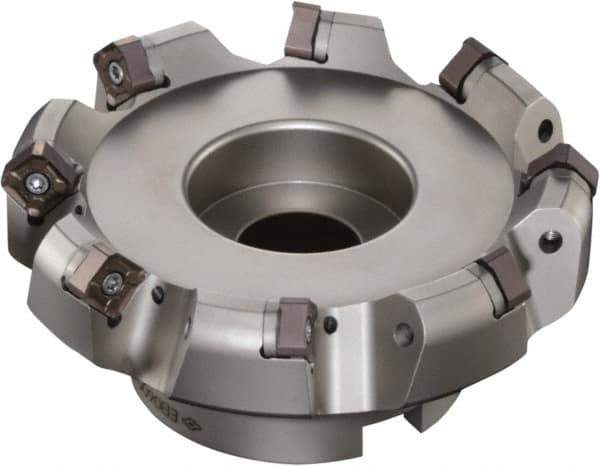

Sumitomo - 160mm Cut Diam, 50.8mm Arbor Hole, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, ONMT 05T6\xB6SNMT 13T6\xB6XNET 13T6 Insert, Right Hand Cut, Series DualMill
Item #: 53966438
Brand: Sumitomo
Model #: 2200AFQ
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 50.80 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | ONMT 05T6; SNMT 13T6; XNET 13T6 |
| Series | DualMill |
| Through Coolant | No |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | DGC |
| Cutting Rake Angle | -10 (Radial); -5 (Axial) |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 3.9370 |
| Hub Diameter (mm) | 100.00 |
| Keyway Width (mm) | 19.00 |
| Keyway Width (Decimal Inch) | 0.7480 |
| Maximum Body Diameter (Decimal Inch) | 6.8504 |
| Cutting Direction | Right Hand |
| Pitch | Coarse |
| Counterbore Diameter (Decimal Inch) | 2.8346 |
| Complete Insert Compatibility | ONMT 05T6ANER; SNMT 13T6ANER; XNET 13T6ANEN |
