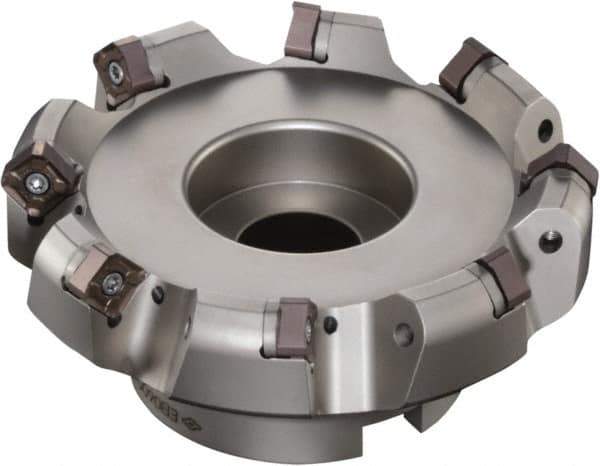

Sumitomo - 80mm Cut Diam, 25.4mm Arbor Hole, 45° Indexable Chamfer & Angle Face Mill - 4 Inserts, ONMT 05T6\xB6SNMT 13T6\xB6XNET 13T6 Insert, Right Hand Cut, Through Coolant, Series DualMill
Item #: 53966867
Brand: Sumitomo
Model #: 2200AFM
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | ONMT 05T6; SNMT 13T6; XNET 13T6 |
| Series | DualMill |
| Through Coolant | Yes |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | DGC |
| Cutting Rake Angle | -10 (Radial); -5 (Axial) |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Hub Diameter (mm) | 60.00 |
| Keyway Width (mm) | 9.50 |
| Keyway Width (Decimal Inch) | 0.3740 |
| Maximum Body Diameter (Decimal Inch) | 3.7008 |
| Cutting Direction | Right Hand |
| Pitch | Coarse |
| Counterbore Diameter (Decimal Inch) | 0.7874 |
| Complete Insert Compatibility | ONMT 05T6ANER; SNMT 13T6ANER; XNET 13T6ANEN |
