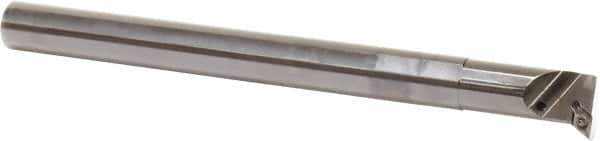

Sumitomo - 1.3" Min Bore Diam, 12" OAL, 1" Shank Diam, A-SDUC Indexable Boring Bar - DCMT 32.52 Insert, Screw Holding Method
Item #: 53972311
Brand: Sumitomo
Model #: U101942
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SDUC |
| Series | ANSI-ISO |
| Minimum Bore Diameter (Decimal Inch) | 1.3000 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | DCMT 32.52 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.7500 |
| Insert Thickness (Inch) | 5/32 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | -5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | DCMT 32.52 |
| Toolholder Material | Steel |
