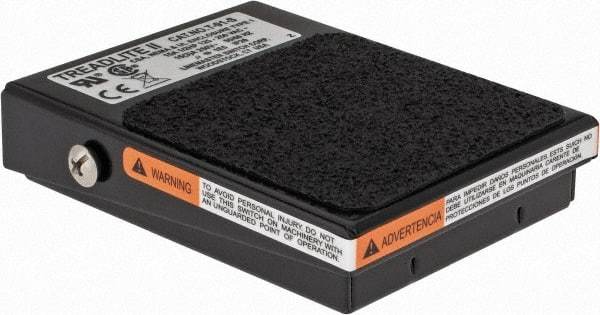

LINEMASTER - 1 Treadle, 15 Amp, 1/2 hp, Momentary (MO), SPDT, Electric Foot Switch - 1 NEMA Rated, IP20, Steel, 3-1/2" Long x 2.63" Wide x 1" High
Item #: 54097183
Brand: LINEMASTER
Model #: T-91-S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Electric |
| Operation Type | Momentary (MO) |
| Number of Treadles | 1 |
| Contact Configuration | NO/NC |
| Contact Form | SPDT |
| NEMA Rating | 1 |
| Switch Color | Black |
| Horsepower | 1/2 |
| Amperage | 15 |
| Terminal Type | Quick Connect |
| Body Material | Steel |
| Ingress Protection Rating | IP20 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Height (Inch) | 1 |
| Overall Height (Decimal Inch) | 1 |
| Overall Width (Decimal Inch) | 2.6300 |
| Standards Met | CE; CSA Certified; EN 60529; RoHS Compliant; UL Recognized |
