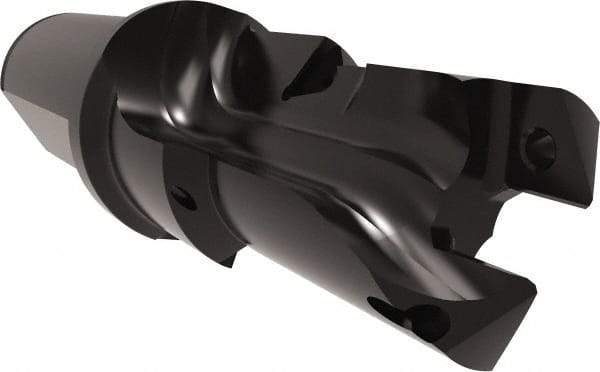

Allied Machine and Engineering - 29 to 32mm Diam, Straight Shank, 31.75mm Body Shank Diam, Combo Chamfer and Countersink Drill - TCMT 16T304 Insert, 132.95mm OAL
Item #: 54275037
Brand: Allied Machine and Engineering
Model #: 60129C45-125F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 32.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.2597 |
| Minimum Drill Diameter (mm) | 29.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.1417 |
| Body Shank Diameter (mm) | 31.75 |
| Body Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 1 |
| Insert Style | TCMT 16T304 |
| Body Diameter (mm) | 36.91 |
| Body Diameter (Decimal Inch) | 1.4531 |
| Overall Length (mm) | 132.95 |
| Overall Length (Decimal Inch) | 5.2344 |
| Insert Holding Method | Screw |
| Shank Length (mm) | 57.94 |
| Shank Length (Decimal Inch) | 2.2813 |
| Through Coolant | Through Coolant |
| Series | 29; GEN3SYS; GEN3SYS XT |
