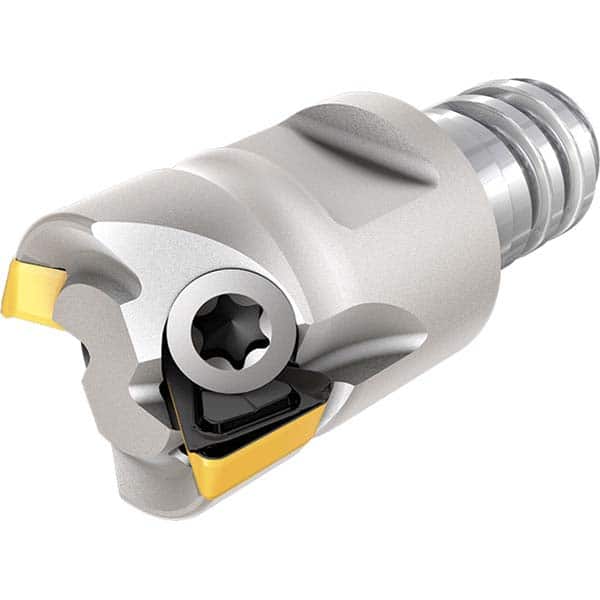

Indexable Square-Shoulder End Mill: HM390 ETP D.383MMT0604, 0.3750'' Cut Dia, 0.1200'' Max Depth of Cut, 0.3600'' Shank Dia, T06 Modular Connection, Uses 3, No,
Item #: 54321096
Brand: Iscar
Model #: 3350631
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 0.3750 |
| Maximum Cutting Diameter (Inch) | 3/8 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1200 |
| Cutter Style | HM390 |
| Shank Diameter (Decimal Inch) | 0.3600 |
| Shank Diameter (mm) | 9.10 |
| Maximum Ramping Angle | 2.5 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 0.7400 |
| Tool Material | Steel |
| Series | HM390 |
| Flute Type | Helical |
| Modular Connection Size | T06 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 0.5000 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | No |
