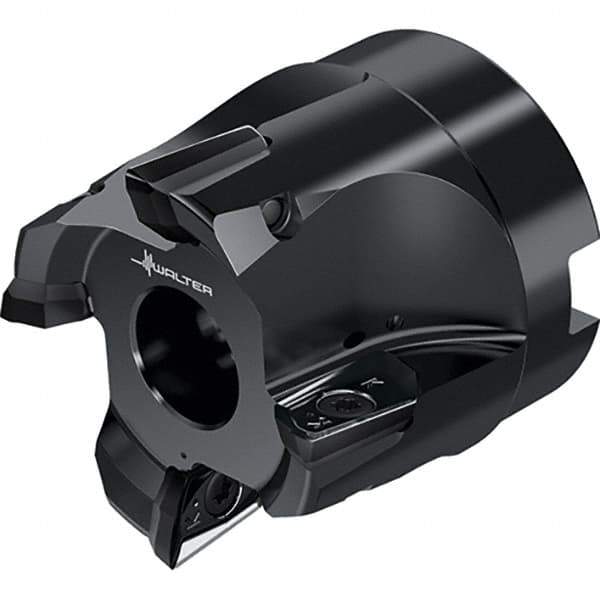

Walter - 1-1/2" Cut Diam, 15mm Max Depth of Cut, 1-1/4" Shank Diam, 178mm OAL, Indexable Square Shoulder End Mill - Cylindrical Shank, 0° Lead Angle, Through Coolant, Series M2131-UA-L
Item #: 54372941
Brand: Walter
Model #: 6836977
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.10 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (mm) | 178.00 |
| Overall Length/Projection (Decimal Inch) | 7.0080 |
| Lead Angle | 0 |
| Series | M2131-UA-L |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.591 |
| Number of Cutter Inserts | 3 |
| Number of Flutes | 3 |
| Maximum RPM | 11800 |
| Toolholder Material | Steel |
