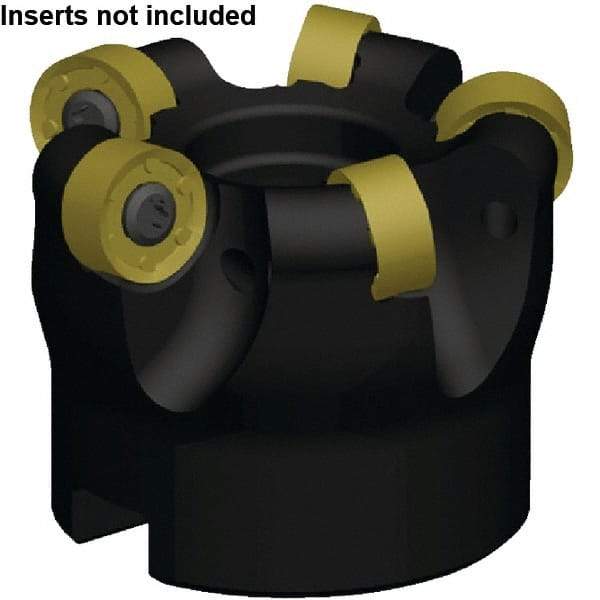

Kennametal - 111mm Cut Diam, 3.96mm Max Depth, 1-1/2" Arbor Hole, 8 Inserts, RN_J1605M0__ Insert Style, Indexable Copy Face Mill - RODEKA 16 Cutter Style, 14,800 Max RPM, 2 High, Through Coolant, Series Rodeka
Item #: 54462585
Brand: Kennametal
Model #: 5154916
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 111.00 |
| Cutting Diameter (Decimal Inch) | 4.3700 |
| Maximum Depth of Cut (mm) | 3.96 |
| Maximum Depth of Cut (Decimal Inch) | 0.1560 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (mm) | 50.80 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | Rodeka |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | RN_J1605M0__ |
| Cutter Style | RODEKA 16 |
| Through Coolant | Yes |
| Maximum RPM | 14800 |
| Hub Diameter (Decimal Inch) | 3.3800 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 4.7560 |
| Maximum Cutting Diameter (Decimal Inch) | 5.000 |
