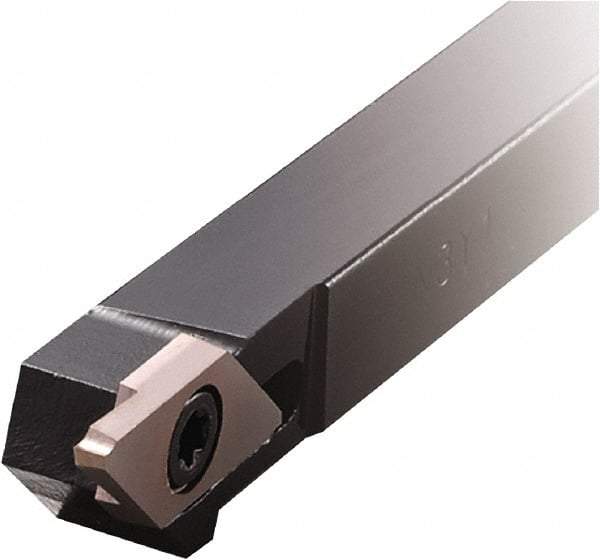

Kyocera - External Thread, Right Hand Cut, 16mm Shank Width x 16mm Shank Height Indexable Threading Toolholder - 120mm OAL, KTKFR Toolholder, Series KTKF
Item #: 54492970
Brand: Kyocera
Model #: 8835034
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (Decimal Inch) | 4.7244 |
| Overall Length (mm) | 120.00 |
| Series | KTKF |
| Toolholder Style | KTKFR |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Pitch Range | 0.2-1.5 |
