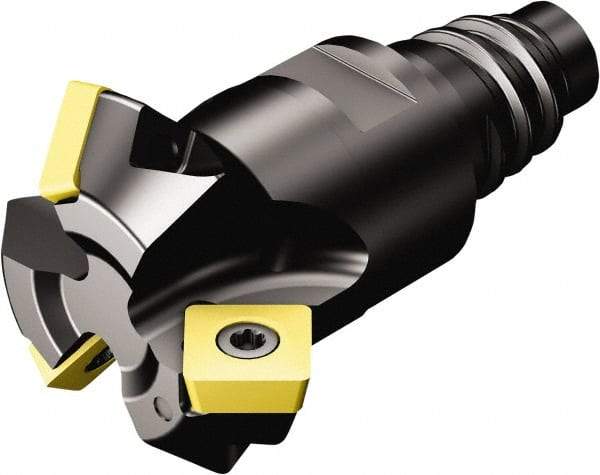

Sandvik Coromant - 12mm Cut Diam, 15.5mm Arbor Hole, 5.47mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 1 Insert, 495-09T3M-XL Insert, Right Hand Cut, Through Coolant, Series CoroMill 495
Item #: 54516430
Brand: Sandvik Coromant
Model #: 6536289
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Arbor Hole Diameter (mm) | 15.50 |
| Arbor Hole Diameter (Decimal Inch) | 0.6102 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.8504 |
| Overall Height (mm) | 47.00 |
| Insert Compatibility | 495-09T3M-XL |
| Series | CoroMill 495 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.47 |
| Maximum Depth of Cut (Decimal Inch) | 0.2154 |
| Number of Cutter Inserts | 1 |
| Cutter Style | 495..EHxx |
| Maximum Body Diameter (Decimal Inch) | 0.4416 |
| Maximum RPM | 14400 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 495-09T3M-XL |
| Toolholder Material | Steel |
