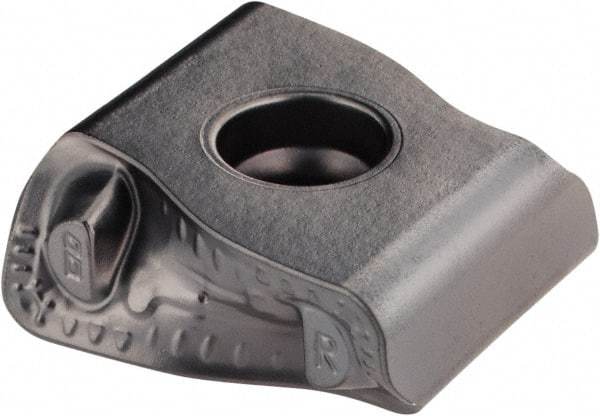

Iscar - LNMX221024 HT Grade IC3028 Carbide Turning Insert - TiN/TiCN Finish, 90° Rectangle, 9.4mm Thick, 3/32" Corner Radius
Item #: 54553482
Brand: Iscar
Model #: 5506523
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Insert Size | 221024 |
| Material | Carbide |
| Length (mm) | 22.00 |
| Length (Decimal Inch) | 0.8660 |
| Thickness (Decimal Inch) | 0.3700 |
| Thickness (mm) | 9.40 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | IC3028 |
| Coating | TiN/TiCN |
| Chip Breaker | HT |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | LNMX221024R |
| Primary Workpiece Material | M; S |
| Secondary Workpiece Material | P |
| Included Angle | 90 |
| Cutting Direction | Right Hand |
| Series | Heliturn |
| Insert Holding Method | Screw |
| Shape | Rectangle |
