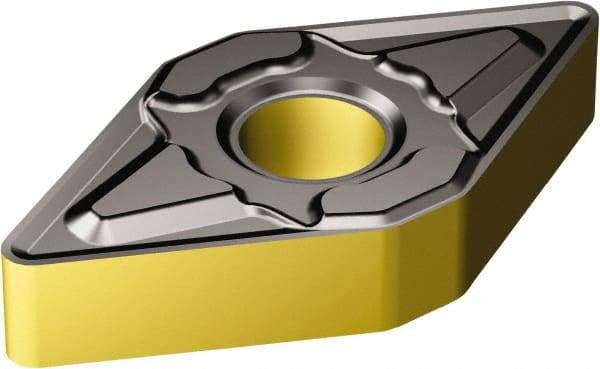

Sandvik Coromant - DNMG333 KM Grade 3210 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 55° Parallelogram, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 54747423
Brand: Sandvik Coromant
Model #: 5731422
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 333 |
| Material | Carbide |
| Length (mm) | 10.43 |
| Length (Decimal Inch) | 0.4106 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.1906 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | 3210 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | KM |
| Insert Length (Decimal Inch) | 0.4106 |
| OverallLength (mm) | 11.63 |
| Overall Length (Decimal Inch) | 0.4578 |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1875 |
| ISO Number | DNMG 11 04 12-KM 3210 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | DNMG 11 04 12-KM 3210 |
| Primary Workpiece Material | K |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 10.43 |
| Maximum Depth of Cut (Decimal Inch) | 0.4106 |
| Insert Holding Method | Pin & Clamp |
| Cutting Width (mm) | 10.43 |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Parallelogram |
