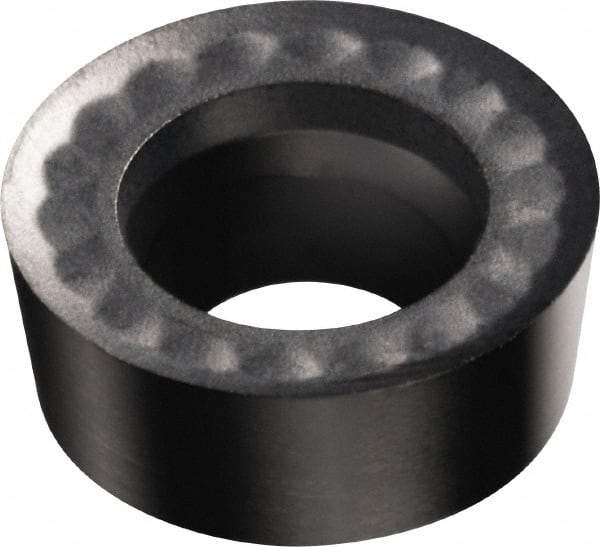

Sandvik Coromant - RCGX0602M0 AL Grade H10 Carbide Turning Insert - Uncoated, Round, 1/4" Inscr Circle, 3/32" Thick
Item #: 54912381
Brand: Sandvik Coromant
Model #: 5738787
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 0602M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Manufacturer's Grade | H10 |
| Coating | Uncoated |
| Chip Breaker | AL |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | RCGX0602M0ALH10 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 5738787 |
| Primary Workpiece Material | N |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Round |
