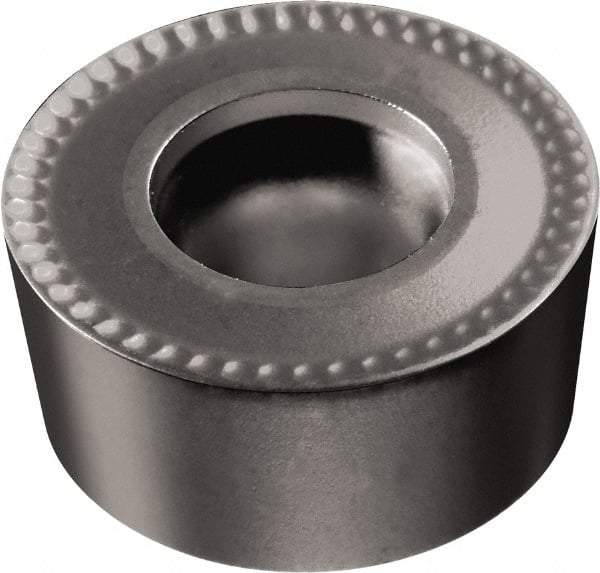

Sandvik Coromant - RCMT0502M0 RCMT Grade 5015 Cermet Turning Insert - Uncoated, Round, 5.9mm Inscr Circle, 3/32" Thick
Item #: 54912647
Brand: Sandvik Coromant
Model #: 5740689
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 0502M0 |
| Material | Cermet |
| Inscribed Circle (mm) | 5.90 |
| Inscribed Circle (Decimal Inch) | 0.2323 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Manufacturer's Grade | 5015 |
| Coating | Uncoated |
| Chip Breaker | RCMT |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| ISO Number | RCMT0502M05015 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 5740689 |
| Primary Workpiece Material | P |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Round |
