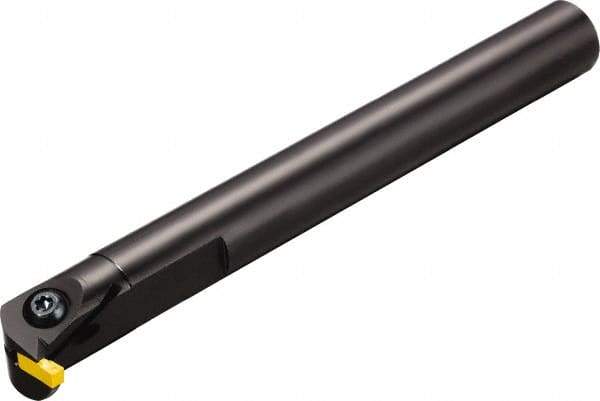

Sandvik Coromant - AG 151.32, Internal, Left Hand, 3.51mm Max Depth of Cut, 2.65mm Max Groove Width, Indexable Grooving Tool Holder - 151.3 Insert Compatibility, 0.56" Shank Height, 6" OAL, Through Coolant
Item #: 54936059
Brand: Sandvik Coromant
Model #: 5731649
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Maximum Depth of Cut (mm) | 3.51 |
| Maximum Groove Width (mm) | 2.65 |
| Maximum Groove Width (Decimal Inch) | 0.1043 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | AG 151.32 |
| Insert Compatibility | 151.3 |
| Shank Height (Decimal Inch) | 0.5600 |
| Series | T-Max Q-Cut |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Profiling; Turning |
| Coolant Hole Diameter (Decimal Inch) | 0.2400 |
| Insert Holding Method | Screw |
| Insert Seat Size | 25 |
| Minimum Hole Diameter (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.7874 |
| Maximum Hole Depth (Decimal Inch) | 0.9500 |
| Maximum Bore Depth (Decimal Inch) | 0.9500 |
| igrvh Maximum Bore Depth (mm) | 24.13 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2800 |
| Center to Cutting Edge (mm) | 11.61 |
| Center to Cutting Edge (Decimal Inch) | 0.4570 |
| Head Length (mm) | 24.13 |
| Head Length (Decimal Inch) | 0.9500 |
| Shank Length (Decimal Inch) | 5.0500 |
| Manufacturers Catalog Number | LAG151.32-D10-25 |
| Height to Shank Top (Decimal Inch) | 0.5600 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123E1-0200-0002-CM; N151.3-265-25-4G; N151.3-300-25-7G; N151.3-300-25-7P; N151.3-A094-25-4G; N151.3-A097-25-4G; N151.3-A105-25-4G; N151.3-A110-25-4G |
| Minimum Bore Diameter (Decimal Inch) | 0.7900 |
| Minimum BoreDiameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.6250 |
