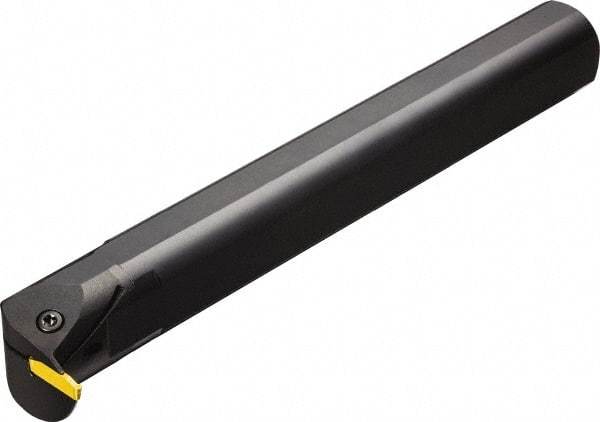

Sandvik Coromant - AG123, Internal, Right Hand, 11mm Max Depth of Cut, 5mm Max Groove Width, Indexable Grooving Tool Holder - N123..GM Insert Compatibility, 1.18" Shank Height, 1.18" Shank Width, 9.8425" OAL, Through Coolant
Item #: 54937412
Brand: Sandvik Coromant
Model #: 5739638
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (Decimal Inch) | 9.8425 |
| Toolholder Style | AG123 |
| Insert Compatibility | N123..GM |
| Shank Height (Decimal Inch) | 1.1800 |
| Shank Width/Diameter (Decimal Inch) | 1.1800 |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Coolant Hole Diameter (Decimal Inch) | 0.3540 |
| Insert Holding Method | Screw |
| Insert Seat Size | J |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Maximum Hole Depth (Decimal Inch) | 1.7720 |
| Maximum Bore Depth (Decimal Inch) | 1.7720 |
| igrvh Maximum Bore Depth (mm) | 45.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5910 |
| Center to Cutting Edge (Decimal Inch) | 1.0728 |
| Head Length (Decimal Inch) | 1.7717 |
| Shank Length (Decimal Inch) | 8.0709 |
| Manufacturers Catalog Number | RAG123J045-20B |
| Height to Shank Top (Decimal Inch) | 1.1810 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | L123J2-0500-0502-CM; L123J2-0500-0504-CR; N123J1-0500-0002-CM; N123J1-0500-0004-CR; N123J1-0600-0002-GE; N123J1-060004S01025; N123J1-0600-RE; N123J1-0600-RM; N123J1-0600-RO; N123J1-0600-RS; N123J1-0600S01025; N123J1-0635-RE; N123J2-0475-0003-GM; N123J2-05 |
| Minimum Bore Diameter (Decimal Inch) | 1.5750 |
| Minimum BoreDiameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.2500 |
