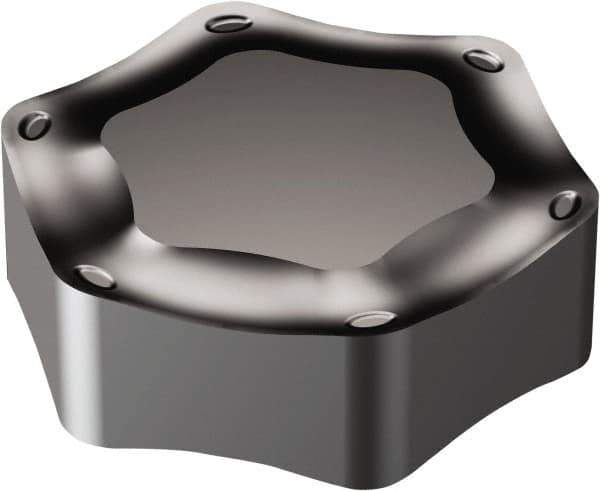

Sandvik Coromant - HNGX090520 KM Grade K20D Carbide Milling Insert - TiCN/Al2O3 Finish, 5.56mm Thick, 16.2mm Inscribed Circle, 2mm Corner Radius
Item #: 54939483
Brand: Sandvik Coromant
Model #: 5733157
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNGX |
| Insert Size | 090520 |
| Material | Carbide |
| Manufacturer's Grade | K20D |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (mm) | 16.20 |
| Inscribed Circle (Decimal Inch) | 0.6378 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Relief Angle | 0.000 |
| Rake Angle | 8 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 3.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1496 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5733157 |
| ISO Number | HNGX 09 05 20-KM K20D |
