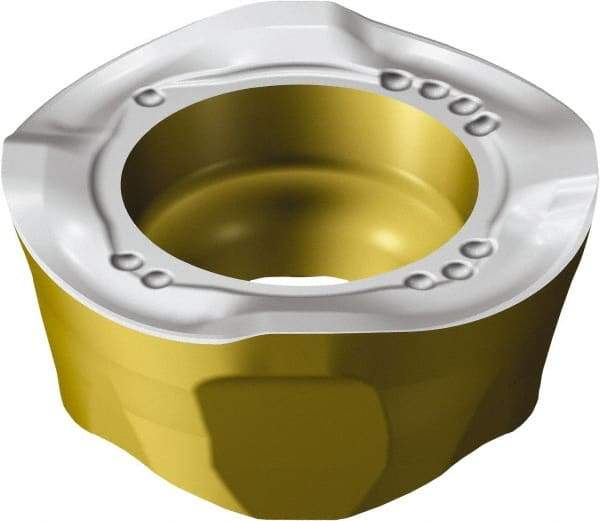

Sandvik Coromant - 600R1252 MM Grade M30B Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5.2mm Thick, 12mm Inscribed Circle, 6mm Corner Radius
Item #: 54939715
Brand: Sandvik Coromant
Model #: 6252753
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 600R |
| Insert Size | 1252 |
| Material | Carbide |
| Manufacturer's Grade | M30B |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (mm) | 5.20 |
| Thickness (Decimal Inch) | 0.2047 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Corner Radius (mm) | 6.00 |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Right Hand |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1811 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 6252753 |
| ISO Number | 600R-1252M-MM M30B |
