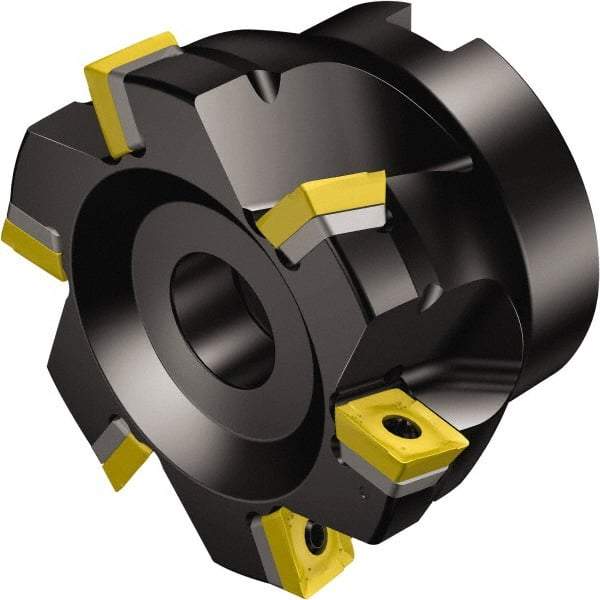

Sandvik Coromant - 8 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 5.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 50mm High, 490R-08T308 Insert Compatibility, Series CoroMill 490
Item #: 54945639
Brand: Sandvik Coromant
Model #: 5761891
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | 490R-08T308 |
| Series | CoroMill 490 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | 490 |
| Maximum RPM | 17100 |
| Cutting Edge Length (Decimal Inch) | 0.2165 |
| ISO Number | 490100Q3208M |
| Complete Insert Compatibility | 490R-08T308 |
| Toolholder Material | Steel |
