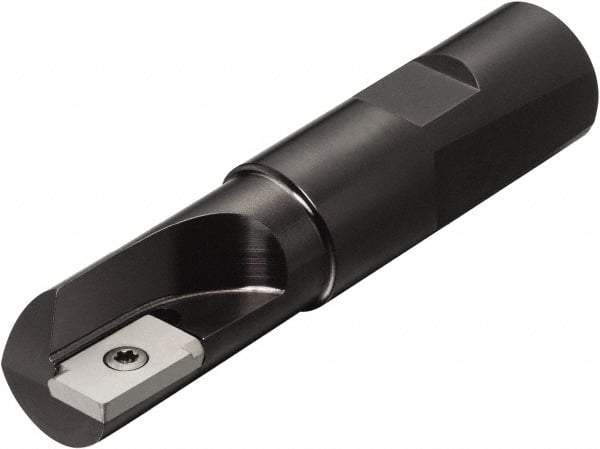

Sandvik Coromant - 25mm Cut Diam, 15mm Max Depth of Cut, 25mm Shank Diam, 3.7795" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Whistle Notch/Weldon Shank, 90° Lead Angle, Series U-Max
Item #: 54946280
Brand: Sandvik Coromant
Model #: 5743029
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9844 |
| Shank Type | Whistle Notch/Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Overall Length/Projection (Decimal Inch) | 3.7795 |
| Lead Angle | 90 |
| Series | U-Max |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R216.2-525 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.5709 |
| Weldon Flat | Yes |
| Insert Compatibility | R216.2-07 T3 235; R216.2-07 T3 HM; R216.2-07 T3 S6; R216.2-07 T3 SM30; R216.2-15 T3 08-1 235; R216.2-15 T3 08-1 HM; R216.2-15 T3 08-1 S6; R216.2-15 T3 08-1 SM30; R216.2-15 T3 12-2 235; R216.2-15 T3 12-2 SM30 |
| Shank Length (Decimal Inch) | 2.2087 |
| Maximum RPM | 12095 |
| Toolholder Material | Steel |
