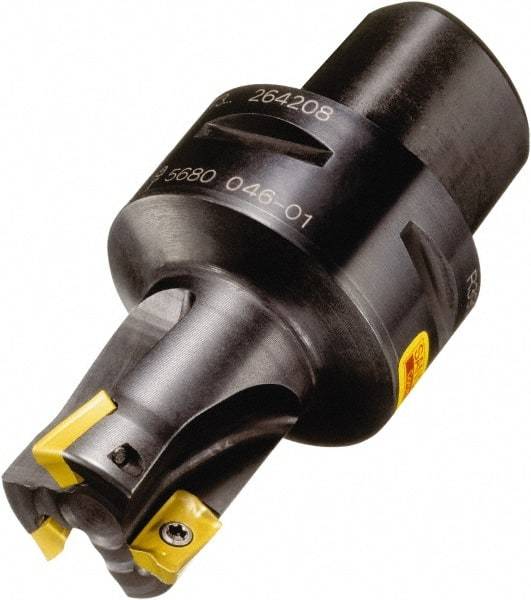

Sandvik Coromant - 2 Inserts, 16mm Cut Diam, 32mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 50mm High, R390-11.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 54946389
Brand: Sandvik Coromant
Model #: 5745474
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | R390-11.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | R390 |
| Maximum RPM | 39000 |
| Cutting Edge Length (Decimal Inch) | 0.3937 |
| ISO Number | R390016C311L050 |
| Complete Insert Compatibility | R390-11.. |
| Toolholder Material | Steel |
