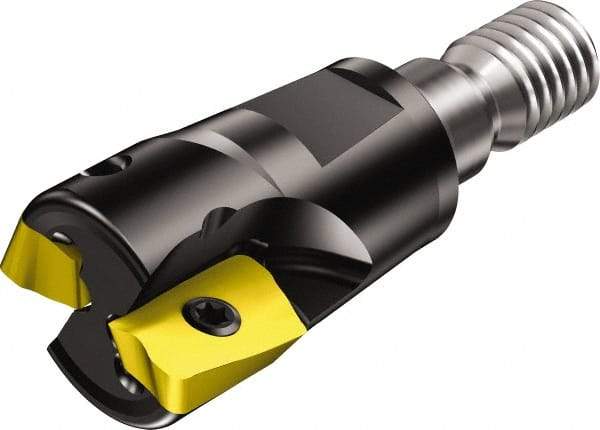

Sandvik Coromant - 3 Inserts, 1-1/4" Cut Diam, 0.3937" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 1.693" High, R390-11.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 54946702
Brand: Sandvik Coromant
Model #: 5740331
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 1.6930 |
| Insert Compatibility | R390-11.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA390 |
| Maximum RPM | 9100 |
| Cutting Edge Length (Decimal Inch) | 0.3937 |
| ISO Number | RA39032T1611M |
| Complete Insert Compatibility | R390-11.. |
| Toolholder Material | Steel |
