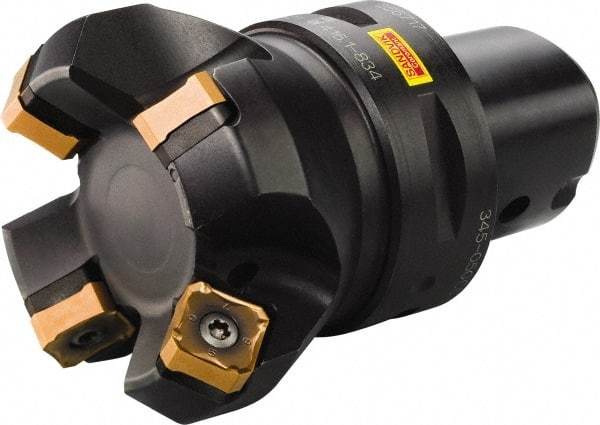

Sandvik Coromant - 63mm Cut Diam, 50mm Arbor Hole, 6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 5 Inserts, 345R-13T5 Insert, Right Hand Cut, Through Coolant, Series CoroMill 345
Item #: 54946918
Brand: Sandvik Coromant
Model #: 5759225
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 50.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 3.5433 |
| Overall Height (mm) | 90.00 |
| Insert Compatibility | 345R-13T5 |
| Series | CoroMill 345 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 5 |
| Cutter Style | 345..Cx |
| Maximum RPM | 15500 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 345R-13T5 |
| Toolholder Material | Steel |
