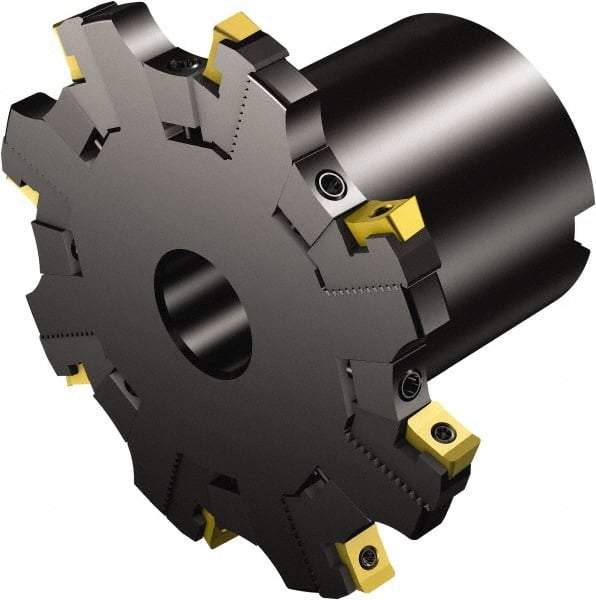

Sandvik Coromant - Shell Mount Connection, 0.866" Depth of Cut, 4" Cutter Diam, 1" Hole Diam, 8 Tooth Indexable Slotting Cutter - 1" Shank Diam, R331.52 Toolholder, Rxx..L Insert, Right Hand Cutting Direction
Item #: 54947205
Brand: Sandvik Coromant
Model #: 5745060
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Maximum Depth of Cut (mm) | 22.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Cutter Diameter (mm) | 101.60 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Cutter Diameter (Inch) | 4 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 8 |
| Toolholder Style | R331.52 |
| Series | CoroMill 331 |
| Insert Style | Rxx..L |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 15900 |
| Maximum Cutting Width (Decimal Inch) | 0.2990 |
| Hub Diameter (Decimal Inch) | 2.1260 |
| Keyway Width (Decimal Inch) | 0.3839 |
| Keyway Width (mm) | 9.75 |
| Rake | Positive |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 4.0000 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 5745060 |
| Overall Height (Decimal Inch) | 2.0080 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
