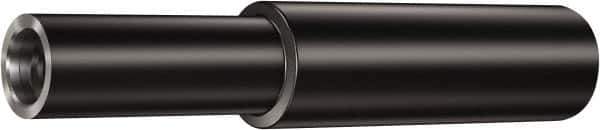

Sandvik Coromant - CoroMill 316 32mm Straight Shank Milling Tip Insert Holder & Shank - 80mm Projection, 0.9488" Neck Diam, 24.1mm Nose Diam, 80mm OAL, Steel Exx-Axx-SS Tool Holder
Item #: 54948393
Brand: Sandvik Coromant
Model #: 5733663
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Projection (mm) | 80.00 |
| Projection (Decimal Inch) | 3.1496 |
| Neck Diameter (Decimal Inch) | 0.9488 |
| Nose Diameter (mm) | 24.10 |
| Nose Diameter (Decimal Inch) | 0.9488 |
| Toolholder Material | Steel |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 0.1969 |
| Maximum Diameter (mm) | 24.10 |
| Maximum Diameter (Decimal Inch) | 0.9488 |
| Shank Material | Steel |
| Toolholder Style | Exx-Axx-SS |
