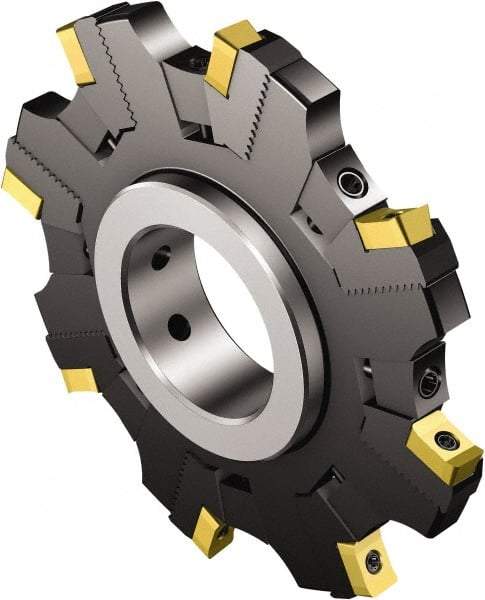

Sandvik Coromant - Arbor Hole Connection, 54.5mm Depth of Cut, 200mm Cutter Diam, 1.9685" Hole Diam, 12 Tooth Indexable Slotting Cutter - L331.52 Toolholder, L Insert, Left Hand Cutting Direction
Item #: 54948468
Brand: Sandvik Coromant
Model #: 5735383
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 54.50 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 12 |
| Toolholder Style | L331.52 |
| Series | CoroMill 331 |
| Insert Style | L |
| Staggered Tooth | No |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 9600 |
| Hub Diameter (mm) | 69.00 |
| Hub Diameter (Decimal Inch) | 2.7165 |
| Keyway Width (Decimal Inch) | 0.4724 |
| Keyway Width (mm) | 12.00 |
| Rake | Positive |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 7.8740 |
| Maximum Body Diameter (mm) | 200 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 5735383 |
| Complete Insert Compatibility1 | N331.1A-11 |
| Overall Height (mm) | 31.20 |
| Overall Height (Decimal Inch) | 1.2284 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
