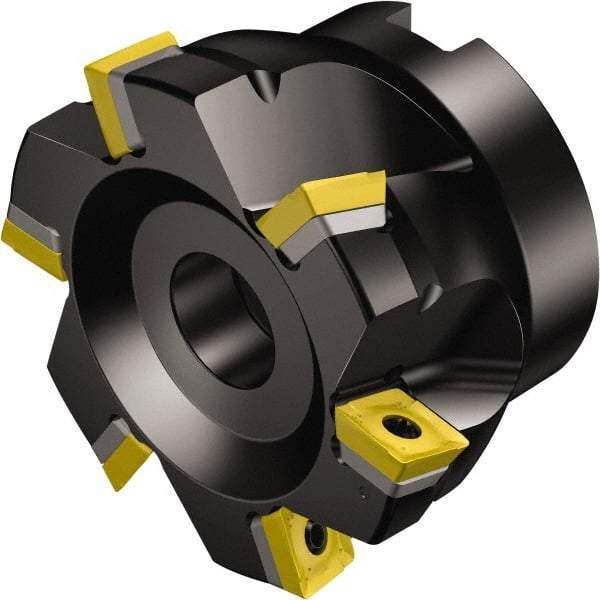

Sandvik Coromant - 6 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 0.2165" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 1.969" High, 490R-08T308 Insert Compatibility, Series CoroMill 490
Item #: 54948526
Brand: Sandvik Coromant
Model #: 5723415
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | 490R-08T308 |
| Series | CoroMill 490 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | A490 |
| Maximum RPM | 17000 |
| Cutting Edge Length (Decimal Inch) | 0.2165 |
| ISO Number | A490102R3808L |
| Complete Insert Compatibility | 490R-08T308 |
| Toolholder Material | Steel |
