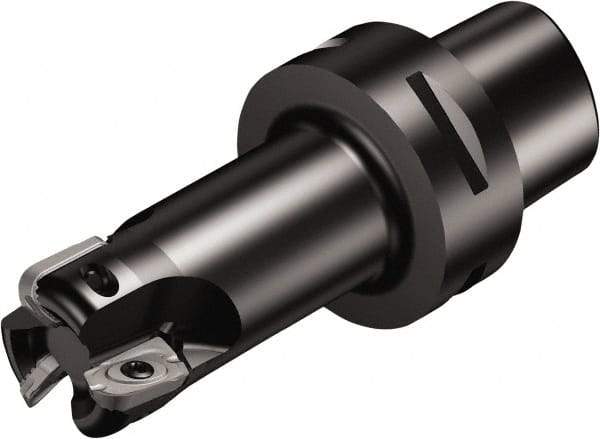

Sandvik Coromant - 3 Inserts, 1-1/2" Cut Diam, 1.9685" Arbor Diam, 0.4724" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 3.45" High, R790-1604.. Insert Compatibility, Through Coolant, Series CoroMill 790
Item #: 54950324
Brand: Sandvik Coromant
Model #: 5740376
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 3.4500 |
| Insert Compatibility | R790-1604.. |
| Series | CoroMill 790 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA790 |
| Maximum RPM | 39000 |
| Cutting Edge Length (Decimal Inch) | 0.4724 |
| ISO Number | RA790038C5S216M |
| Complete Insert Compatibility | R790-1604.. |
| Toolholder Material | Steel |
